Pump Seals Elastomer Bellow Seals

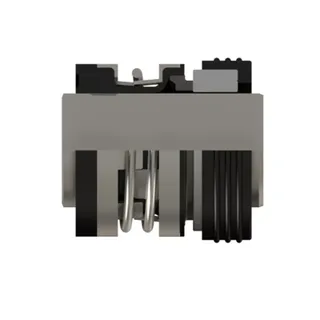

Advantage Seal Type 16C Replaces: AESSEAL® B05, VULCAN® 14DIN, Flowserve® 140 Designed for demanding applications, the Type 16C mechanical seal is a compact, unitized, single-spring elastomer bellows seal that offers maximum durability and performance. The Type 16C is often found in water-based applications, such as wastewater treatment, potable water, HVAC, pool and spa and other general applications.

Request a callback

Features

single seal, unbalanced, independent of direton of rotation

design standard：ISO3069 DIN24960 EN12756 ANSI B73.1 M-1991

Innovative bellows design is pressure-supported and will not crease or fold under high pressure.

Non-clogging, single-coil spring keeps seal faces closed and properly tracking during all phases of operation.

Positive drive through interlocking tangs will not slip or break free during upset conditions.

Available in the widest array of material options, including high performance silicon carbides.

Parameters

Pressure：p1 = 16 bar (232 PSI)

Temperature：t = -20 °C(-4°F) … +180 °C (+356°F)

Sliding velocity：vg = 13 m/s (43 ft/s)

  • Dependent on medium, size and material

Application Medium

Weak corrosive media such as water, oil, sewage, food, pulp, etc.

Application

centrifugal, rotary and turbine pumps, compressors, chillers and other rotary equipment
