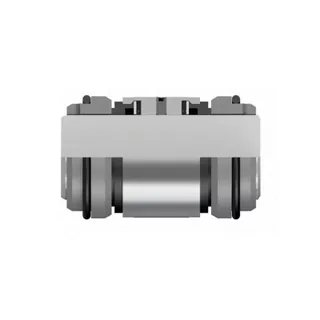

Advantage Seal Type 850 Replaces:
Eagle Burgmann® M74D
The 850 type machnical seal is widely used in pumps.
The transmission mode can be changed to provide maximum durability and performance.
It’s very suitable for standard chemical pumps, vertical screw pumps, gear pumps and other optional equipment.
Commonly used in chemical industry applications, such as toxic medium, medium with low solid contents and low abrasive, medium with poor lubricating performance, standard chemical pump.
Dual seal, unbalanced, independent of direction of rotation
Design standard: IS03069, DIN24960
The push ring is stuck by the transmission coupler to prevent the spring from falling off, and the sealing ring is not tightly embedded, which is convenient to replace
The design of multiple small springs makes the force more uniform, and the spring is not in contact with the medium, so it is widely used.
Can provide the widest options of materials.
Pressure：p1 = 20 bar (290 PSI)
Temperature：t = -40 °C(-40°F) … +200 °C (+392°F)
Sliding velocity：vg = 20 m/s (66 ft/s)
Water, oil, acid, alkali, organic solvent, etc., allow a small amount of particles, crystallization, high viscosity medium.
Processing, water and wastewater treatment, chemical industry, marine, pulp and papermaking industrial, lubricants, low particle content medium, water and sewage pump, chemical standard pump, vertical screw pump, gear pump, multistage pump
